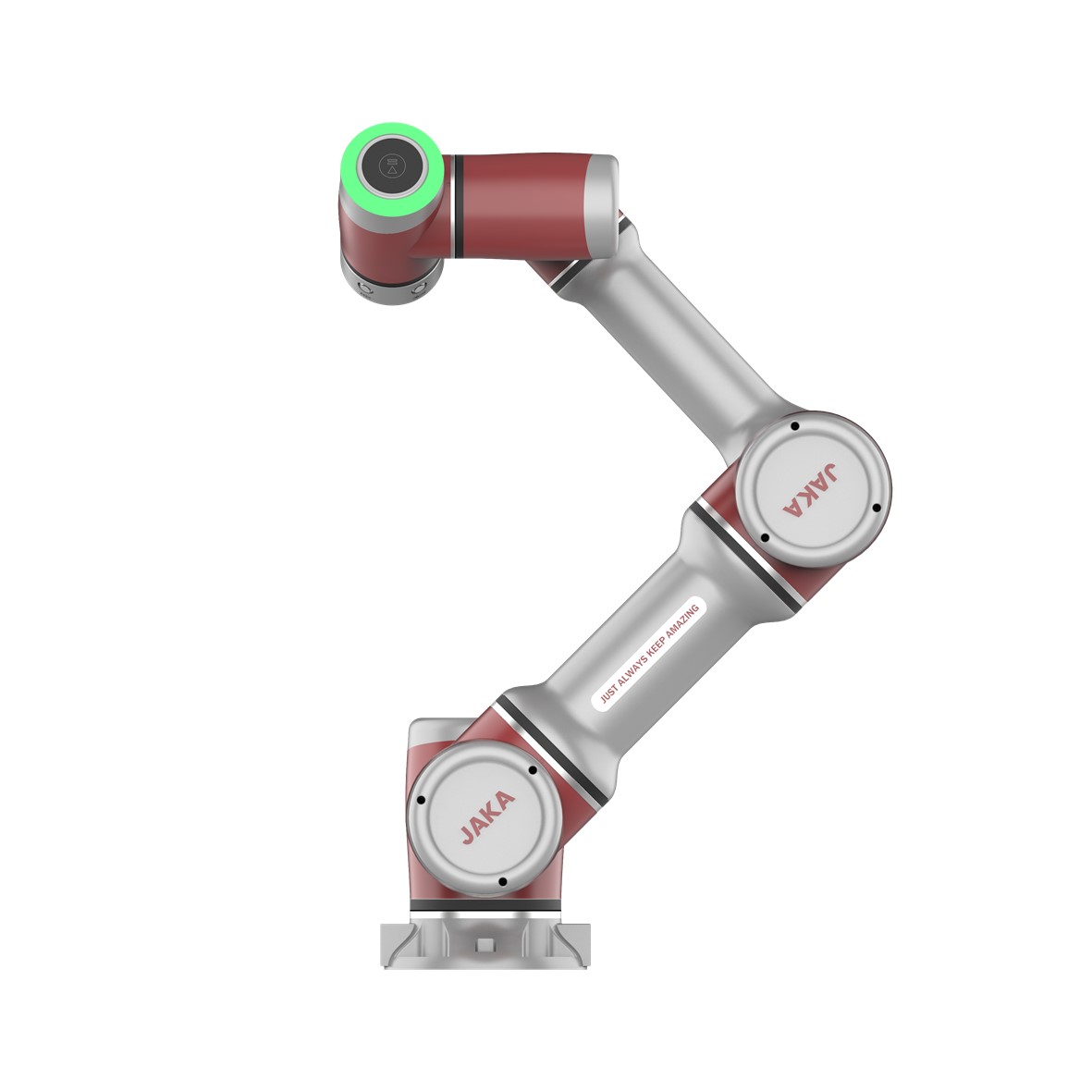

Jaka Zu ® 7
Collaborative Cobots
■ High payload and weight ratio (≈1:3)
■ Obtain portability and heavy payload at the same time
■ No need of any safety fences
■ Easy to build
QUANTITY
■ ■ ■ ■ ■ ■ ■ ■ ■ ■ SPECIFICATIONS
■ ■ ■ ■ ■ ■ ■ ■ ■ ■
Jaka Zu ® 7
| Payload | 7kg |
| Weight (W cable) |
22kg |
| Work radius | 819mm |
| Repeatability | ±0.03mm |
| Axis | 6 |
| Programming | Graphical programming, free-drive |
| Teach pendant | MT(PAD/Mobile)APP |
| Collaborative operation | Accordance with GB 11291.1-2011 |
| Power | 350W |
| Temperature range | 0-50°C |
| IP Specification | IP54 |
| Installation | Installation at any Angle |
| Tool I/O | Digital input 2 Digital output 2 Analog input 1 |
| Tool I/O Power | 24V |
| Base diameter | 158mm |
| Materials | Aluminium, PC |
| Tool I/O Size | M6 |
| Cable length | 6m |
