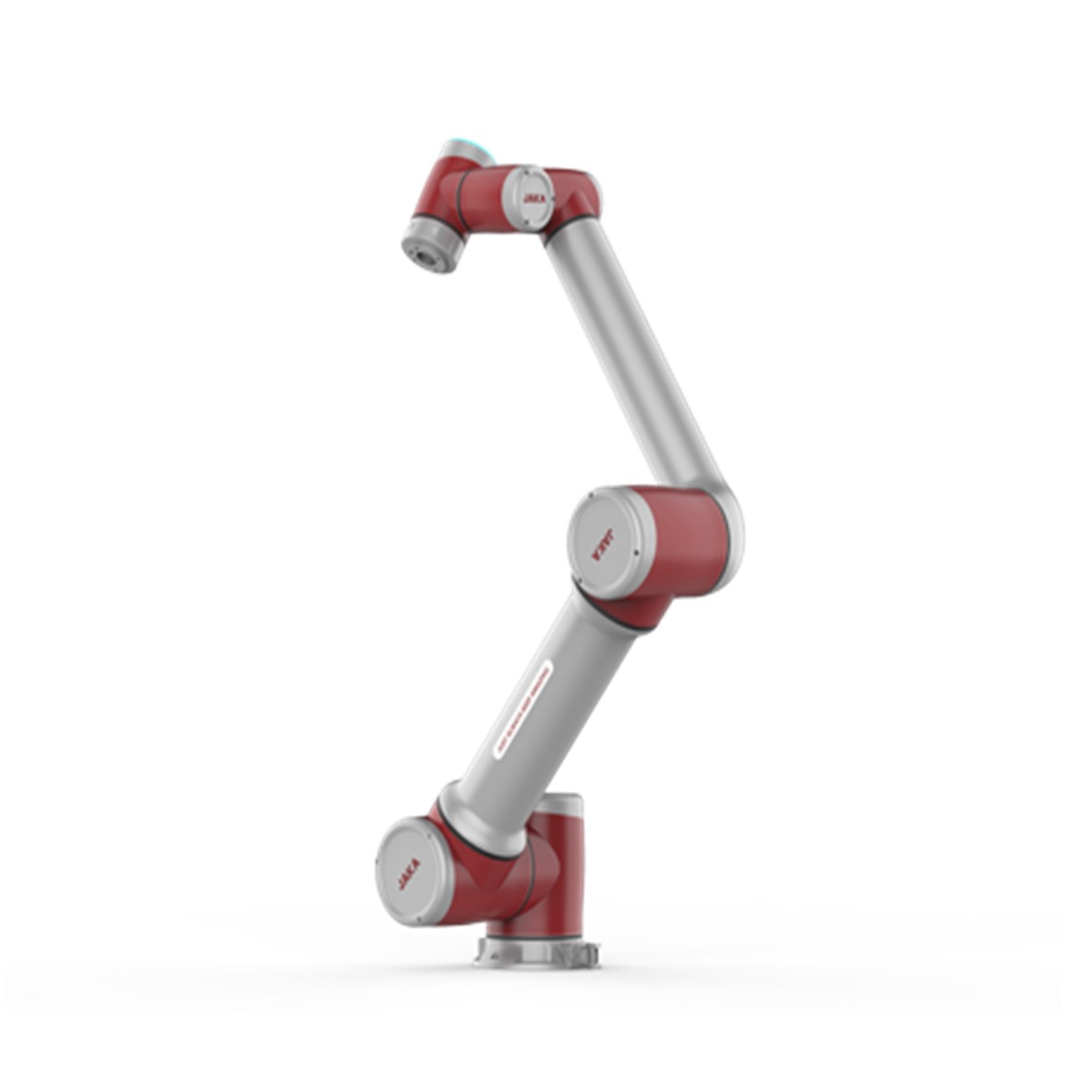

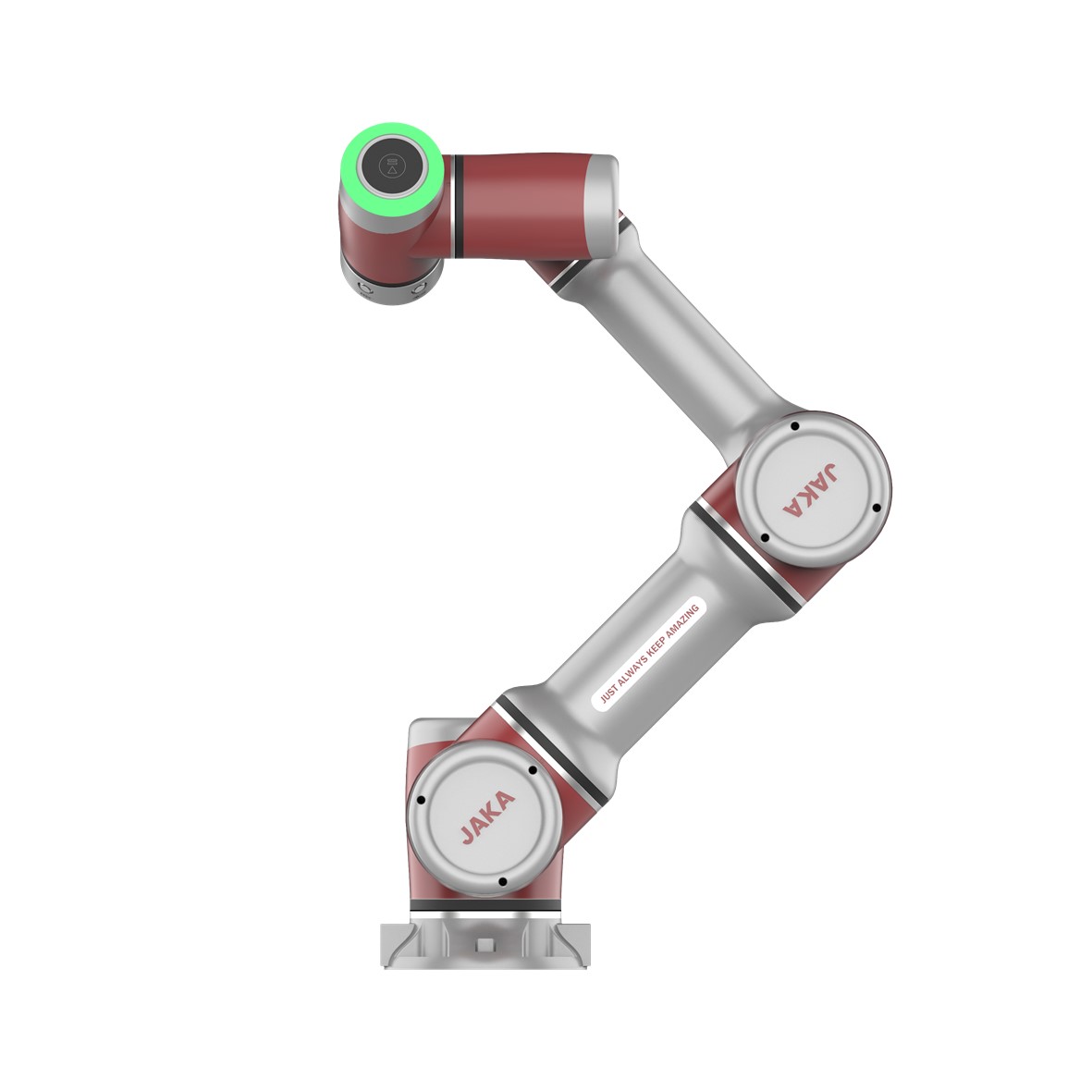

Jaka Zu ® 12
Collaborative Cobots
■ Lighter payload and major radius
■ High-strength applications
■ Larger scope and range
■ Collision-Detected stop
QUANTITY
■ ■ ■ ■ ■ ■ ■ ■ ■ ■ SPECIFICATIONS
■ ■ ■ ■ ■ ■ ■ ■ ■ ■
Jaka Zu ® 12
| Payload | 12kg |
| Weight (W cable) |
41kg |
| Work radius | 1327mm |
| Repeatability | ±0.03mm |
| Axis | 6 |
| Programming | Graphical programming, free-drive |
| Teach pendant | MT(PAD/Mobile)APP |
| Collaborative operation | Accordance with GB 11291.1-2011 |
| Power | 500W |
| Temperature range | 0-50°C |
| IP Specification | IP54 |
| Installation | Installation at any Angle |
| Tool I/O | Digital input 2 Digital output 2 Analog input 1 |
| Tool I/O Power | 24V |
| Base diameter | 188mm |
| Materials | Aluminium, PC |
| Tool I/O Size | M6 |
| Cable length | 6m |
